130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal

Brand Name : Green Eco-Equipment

Certification : ISO9001:2008/CE

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 10~15 work days after receiving fullpayment.

Packaging Details : In Bulk/Tray/Wooden Case/As Customer's Requirement

Warranty : 1 years

Material Feature : Heat Resistant

Motor Type : Adjustable speed motor

Suitable Material : Cement, Coal, Chemical, Grain, Gravel, Sand

Feature : High capacity

Material : Carbon steel

Power : as your requirement

Max. lifting height : 130 meter

Contact Now

TDG Series High Strength Steel Rubber Belt Bucket Elevator For Ore Coal





Product Description



TDG type steel rope belt bucket elevator is designed and manufactured according to JB3926-85 standard.

Steel rope belt bucket elevator is made up of a series of hopper fixed by uniform traction in unprovoked, materials be conveyed in vertical state.

Our company also can design and manufacture special models based on your needs.

130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal

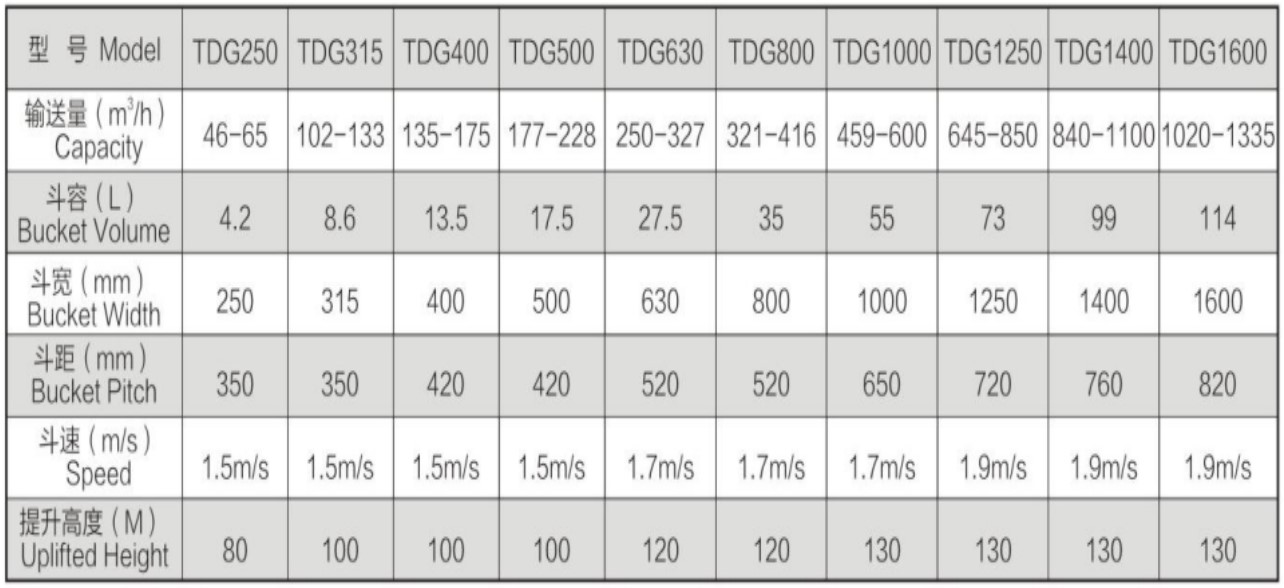

Main Parameters



130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal



Principle



Bucket Elevator is composed of machine head, main frame,Maintenance cylinder, vents Ventilators, dustpan, dustpan belt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.

1.Firstly, the materials are evenly fed into the dustpan on the machine base;

2.Secondly, the materials are elevated into the machine head;

3.Thirdly, the raw materials are dumped into the targeted machine.



Features

1. Completely enclosed for dust and weather-tight operation

2. The lifting height is up to 130 meters.

3. The temperature of materials is not higher than 100°C;

4. Large capacity from 39m3/h to 184m3/h, including 7 models

5. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.

6. Long service life, it seldom occurs extrusion and collision phenomenon.

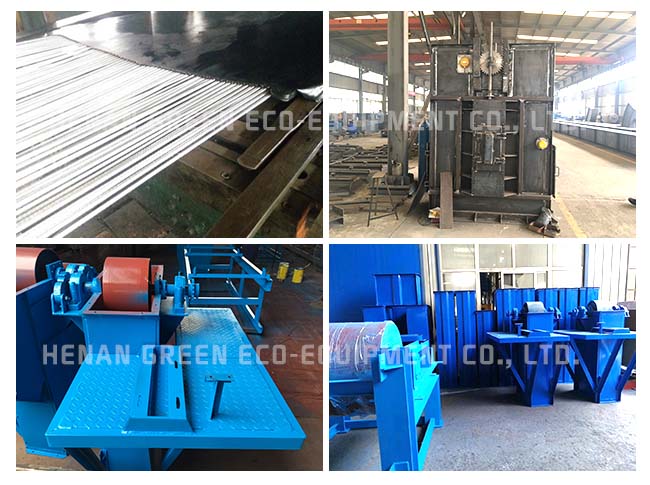

Details Show



130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal

Package and Shipment



130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal

Project Case



130m High Strength Steel Rubber Belt Bucket Elevator For Ore Coal
