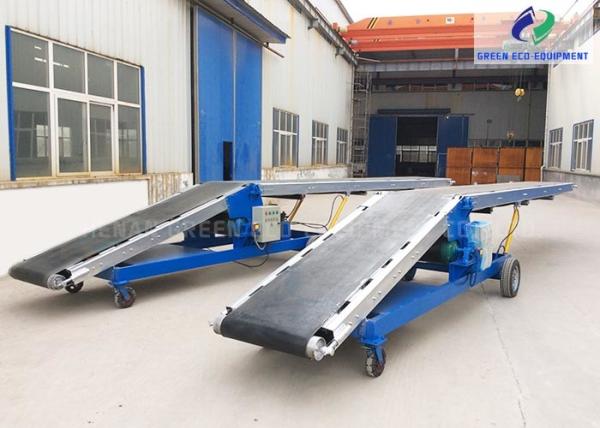

Movable Conveyor Carbon Steel Truck Loading Small Mobile Conveyor System Machine Mobile Belt Conveyor
Product Description
Mobile belt conveyor is a kind of continuous mechanical handling equipment with high efficiency, good safety and good mobility. Mainly used for short-distance transport, handling of bulk material and the product one-piece weight less 100kg on loading and unloading stations which are often changed, such as the port, terminal, station, coal yard, warehouse, building site, sand quarry, farm and so on. It can be divided into lift and not lift type, the running of belt is driven by electric-roller, and the whole lifting and running are non-motorized.
Specification
| Model | DY series |
| HS | 8428330000 |
| Belt Width | 500mm-2000mm |
| Conveyor Length | 5-30 meters |
| Belt Speed | 1.0m/s-2.0m/s |
| Lifting Height | As per model |
| Power | 2.2KW-30KW |
| Voltages | 220V-660V |
Mobile belt conveyor is a kind of continuous mechanical handling equipment with high efficiency, good safety and good mobility. Mainly used for short-distance transport, handling of bulk material and the product one-piece weight less 100kg on loading and unloading stations which are often changed, such as the port, terminal, station, coal yard, warehouse, building site, sand quarry, farm and so on. It can be divided into lift and not lift type, the running of belt is driven by electric-roller, and the whole lifting and running are non-motorized.
Features
1.Simple structure and easy installation.
2.Low rate of breakdown and adapt to different use condition.
3.Various design form can meet different industries.
4.Cheap cost and long working life.
5.Easy move with special wheels.
Parameter sheet
| Model | Belt Width (mm) | Lenth(m) | Belt Speed (m/s) | Lifting Height | Slope Angle | Capacity (m³/h) |
| DY-500 | 500 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 50-140 |
| DY-650 | 650 | Max.20 | 0.8-2.0 | adjustable | 0-30 | 100-250 |
| DY-800 | 800 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 170-350 |
| DY-1000 | 1000 | Max.25 | 0.8-2.0 | adjustable | 0-30 | 270-550 |
Notes:The parameter above is just for reference,More models pls inquiry us directly.We accept customization.
How to confirm the model?
1.The capacity that you require?
2.Whats the material to be conveyed?
3.The conveying length and the width of the belt?
4.Whether need adjust height of the motor?
5.The conveying angle?
Application
The mobile belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material,such as rock,also it can convey 50kg bags.
Packing & Shipping
Packaged:Wooden case or full container
Shipment:3-7 Working days after receiving your deposit
