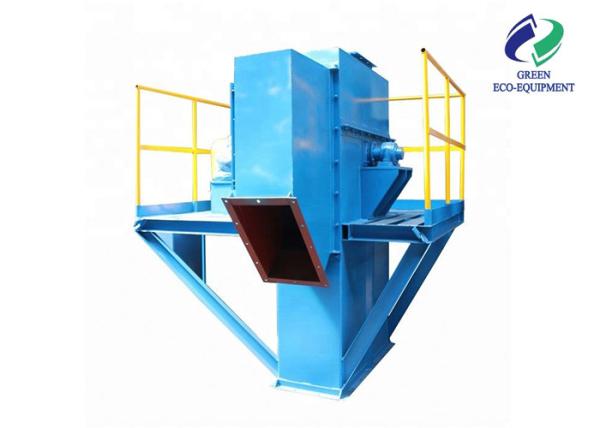

Stainless Steel NE Series Chain Vertical Bucket Elevator Heavy Load

  • 1
  • 2

Brand Name : Green Eco-Equipment

Model Number : NE15- NE400

Place of Origin : HENAN CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 10~15 work days after receiving fullpayment

Packaging Details : Wooden Case

Certification : ISO9001/CE

Name : Chain Bucket Elevator

Material Feature : Heat Resistant

Lumpiness : 35mm-60mm

Capcity : 35-185m3/h

Type : Plate Chain Bucket Elevator

Application : Lift the materials to height

Contact Now

Heavy Load Stainless Steel NE Series Chain Bucket Elevator

The NE plate chain bucket elevator stainless bucket elevator/ bucket elevator for sale is a product that has been introduced and developed by foreign advanced technology. It is suitable for vertical conveying of powdery, granular, and massive materials, as well as materials with greater abrasiveness, such as fly ash, slag, limestone, cement raw material, cement clinker, cement, coal, dry clay, etc. The temperature of the material generally does not exceed 250 degrees and the lifting height is up to 40 meters.
Stainless Steel NE Series Chain Vertical Bucket Elevator Heavy Load

Type of Chains:
1) Plate Chain Bucket Elevator
2) Belt Bucket Elevator
3) Ring Chain Bucket Elevator


Technical parameters:



Model



Capacity

m 3 /h

 Max. size of material (mm)
Percentage %
10 25 50 75 100
NE15 15 65 50 40 30 25
NE30 32 60 75 58 47 40
NE50 60 90 75 58 47 40
NE100 110 130 105 80 65 55
NE150 170 130 105 80 65 55
NE200 210 170 135 100 85 70
NE300 320 170 135 100 85 70
NE400 380 205 165 125 105 90
NE500 470 240 190 145 120 100
NE600 600 240 190 145 120 100
NE800 800 275 220 165 135

110





Quality Guarantee:

12months Quality warranty period (after put into operation formally).

Provide technical guide for dust collector forever.

After Quality Warranty period of bucket elevator, will provide the spare parts with cost price.

All the machines provided by our factory will be tested before ship.
